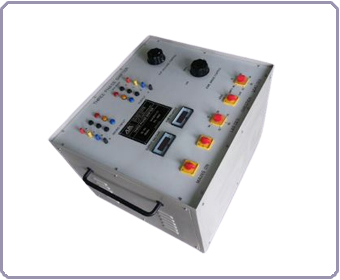

This instrument is capable of producing 3 Phase AC Voltage with phase shif phases simultaneously.
Voltage Output
Range :0 to 415V ph-ph variable.
Measurement 3 Digit Digital voltmeter with selector switch
Phase Angle Setting : With the help of selector switchesand a variac.
Angle Measurement : Switch positions and a digital meter
Indications: LED indicators for input and output
Protection : Glass fuses in the input supply and output.
Power Supply : Three Phase, 415V AC 50 Hz, 120 degree apart
Cabinet: Powder Coated sheet metal cabinet

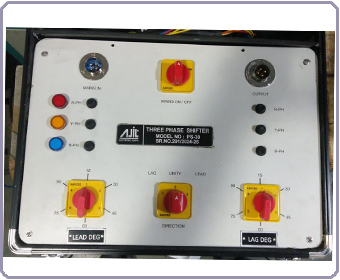

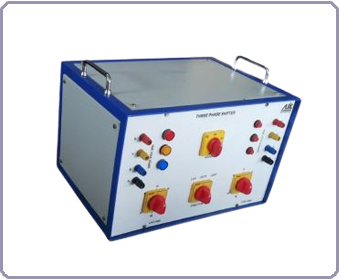

This instrument is capable of producing 3 Phase AC Voltage with phase shifting arrangement between the phases simultaneously.
Voltage Output
Range: 415V ph-ph
Phase Shift : settable by selector switches.
Phase angle setting : A rotary switch will be provided to select
the phase angle in Lead or Lag in steps of 15 Degree.
Protection : Glass fuses in the input supply and output.
Power Supply : Three Phase, 416V AC 50 Hz, 120 degree apart
Cabinet: Powder Coated sheet metal cabinet.
TECHNICAL SPECIFICATIONS :
| MODEL | PHASE ANGLEBY SELECTOR | PHASEANGLEBY VARIAC | VOLTMETER | FINE ANGLE METER | CAPACITY |
|---|---|---|---|---|---|
| P$305 | 90Lag & Lead in steps of 15 | No | No | No | |
| 30VAper ph | |||||
| Ps30] | 90LagéLeadin stepsof 15 | +75 in selected angle range | 0TO500V, AC | Yes | |
| 30VAper ph |
