Application
Insulation Oil
Liquid / Semi Liquid Insulation.
Petroleum Jelly yt
Parameters
Tan Delta
Dielectric Constant
Volume Resistivity

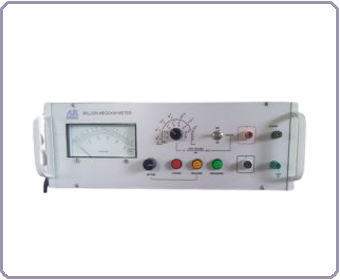

Resistance & Resistivity
Test Voltage DC : 500 VDC
Resistance Range :10-10 T Ohm
Resistance Accuracy : #3% of reading upto 1G0hm
810% at high end.
Three Terminal Oil Cell
Construction : 3 Terminal Configuration
Cell Capacitance : S5pF +1pF
Material: Stainless Steel with Teflon spacers.
Electrode Spacing : 2mm
Volume : 45 to 55mi

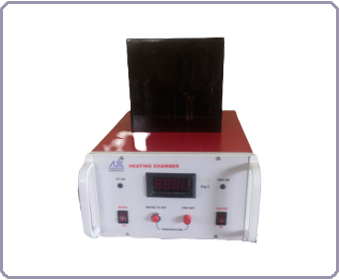

Oil Cell Heater
Power Supply : 230VAC £10%, 50Hz.
Test Temperature : Room Temp. To 110 °C
Accuracy :#1°C
Over shoot: 4°C
General Specifications
Power Supply : 230VAC £10%, 50Hz.
Operating Temp:-10 to 50 °C
Humidity : Ambient to 90% RH
Technical Specification

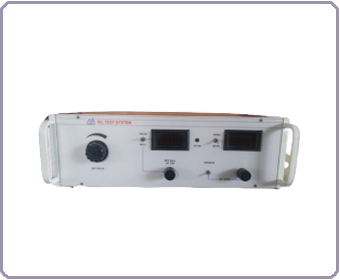

Tan Delta & Volume Resistivity
Test Voltage 0 to 600 V AC
Accuracy : £1.0% £1Volt,
Resolution 1 Volt
Test Frequency : 50Hz
electric Constant Range : 10 to 20.0 accuracy #1
Resolution: 0.01
Dielectric Tan Delta Range : 0.01% to 200%
Accuracy :£1% 0.05%
Resolution: 0.01
Dielectric Loss: 0t0 10.00
Accuracy :£1% £1 digit
