Ajit Electronics Corporation

Oil Test Sets Suppliers
Oil Test Sets

Oil Tester / Oil Test Set / Oil BDV Test Set / Transformer Oil Test set / Transformer Oil Tester / Transformer Oil Testing Kit / BDV Tester / Oil Test Kit / Oil Testing Kit / Transformer Oil BDV Testing Kit / Transformer Oil BDV Tester / Calibration Facility.

Oil Test Sets

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of Oil Test Set / Oil Tester / Oil BDV Test Set / Transformer Oil Test set / Transformer Oil Tester / Transformer Oil Testing Kit / BDV Tester / Oil Test Kit / Oil Testing Kit / Transformer Oil BDV Testing Kit / Transformer Oil BDV Tester Loacated in Dombivli, Thane, Mumbai, India.

GENERAL

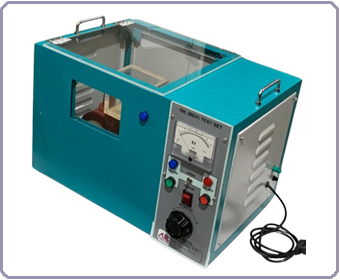

AJIT Transformer Oil Set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil. The set has been specially designed for the testing the die electric breakdown Voltage of insulating liquids.

FEATURES OF AUTOMATIC OIL TESTER :

The oil cups are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the electrode holders eliminate oil leakages around shafts.

ACCESSORIES SUPPLIED WITH EACH SET :

  1. OIL CUP WITH ONE SET OF ELECTRODES
  2. ONSE SET OF GO/NO-GO GAUGES
  3. ONE SET OF INSTRUCTION MANUAL.

SAFETY

Maximum possible safety of the operator as well as the equipment is ensured by a safety conscious design. The voltage controller is inter locked at its minimum position so that H.V. can be switched ON only when the voltage controller is brought to zero after every test or interruption. The acrylic door leading to H.V. Terminals has a micro switch fitted so that opening of the acrylic door shuts the H.V. OFF.

APPLICATION

AJIT oil set is completely self contained, compact & portable unit giving smooth variable output voltage from zero to 60/80/100KV for testing the dielectric strength of insulating oil. The set has been specially designed for testing the dielectric breakdown Voltage of insulating liquids as per the directions mentioned in IS 6792.

OIL CELL

The oil cells are made of Acrylic & have removable electrodes for easy cleaning & polishing. The unique design of the electrode holders eliminate oil leakages around shafts.

ACCESSORIES SUPPLIED WITH EACH SET :

SPECIFICATION :

MODEL INPUT OUTPUT ACCURACY RATE OF RISE OF VOLTAGE [approximately] DIMENSIONS LXBXH
A/60 220/250V 10%, ± 50Hz 0-60 KV ±4% of full Scale Manual 55x35x42 cm Approx.
A/80 0-80 KV 70x40x48 cm Approx.
A/100 0-100 KV 70x40x48 cm Approx.
A/60M 0-60 KV Automatic 2 KV/Sec.(Motorised) 55x35x42 cm Approx.
A/80M 0-80 KV 70x40x48 cm Approx.
A/100 M 0-100 KV 70x40x48 cm Approx.
