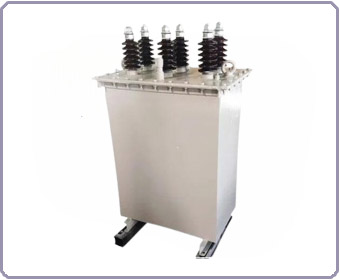

Iron-core series reactors is a type of electrical reactor commonly used in power systems for various purposes, primarily to control voltage and current. These reactors are characterized by having an iron core, which plays a crucial role in their operation. It will control the impedance, voltage regulation, current limitation with harmonics reduction.
Role of Series Reactor in Capacitor Bank
In the existing power system due to electronics load or variable drives system lot of harmonics is generated and its very harmful for system stability as well as important electrical equipment. To mitigate these kind of harmonics as well as reduce switching inrush current series reactor is used along with capacitor bank. There are two types one is tuned & other is detuned.
Tuned Reactor
To minimize the specific harmonics that is only one harmonics level then tuned harmonics filter is used. At time of design we consider only one harmonics level.
Detuning Reactor :
To minimize multiple harmonics level by using one reactor then detuned series reactor is useful. So in this reactor our design is combination of multiple harmonics filter in one arm.
Features :
TECHNICAL SPECIFICATIONS :
| Manufacturer & Make | AJIT ELECTRONICS CORPN. |
|---|---|
| Reference | ISS 2026 - 6 / IEC 60076 |
| Type of Capacitor | a) Iron Core dry type series reactor b) Iron Core Oil cooled type Series Reactor |
| Type of Winding | Copper / Aluminum |
| Rated Frequency | 50 / 60 Hz |
| Rated Voltage(kV) | 3.3 kV to 33 kV |
| Detuning Factor | 0.2% to 14 % |
| Colling Method | Epoxy / Oil cooled |
| Max. Continuous Current | 130 times to the rated current |
| Temperature Rise | Max.90o C by Resistance method |
| Class of insulation | "H"(180o) |
| Terminal Arrangement | At the top six terminal |
