This instrument is capable of producing 3 Phase AC Voltage with phase shif phases simultaneously.

Application

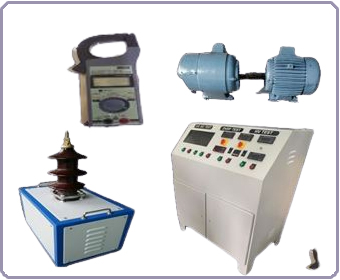

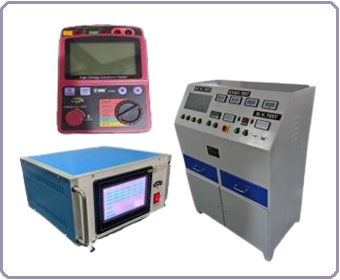

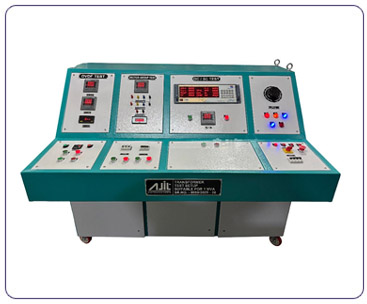

This is a common test panel for distribution/ power transformers of different specifications. The user can perform most of the factory tests, as per the relevant 1S standard for the transformers. The panel consists of slot for power analyser, meters for high voltage test, meters for induced voltage test etc, control for all the tests, protection and interlock circuits so that a single panel can be used to conduct a number of tests using only one dimmerstat and the associated devices.

Features

A single measurement and control center.
simple & Easy to use.
All digital & accurate meters.
Electrically interlocked for safe operation.
Wide range of transformers can be tested.

Prerequisite

What is the connected supply source at the factory in KW or HP?
Want to test Distribution transformers or Power Transformers?
What is the maximum voltage rating in KVA of the transformers you want to test. ?
Whatis the voltage ratings of the Transformers to be tested?
What are the present instrument you have? Whatis the ratings of your present instruments?

Interlock & Protection
