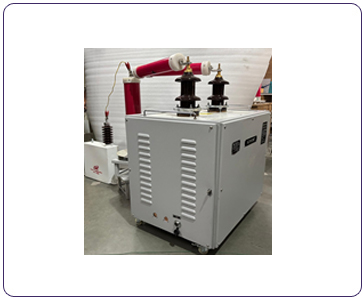

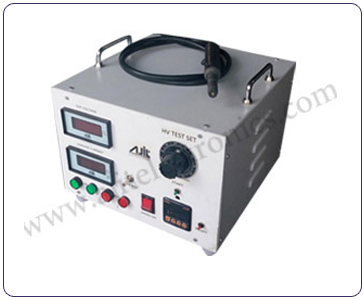

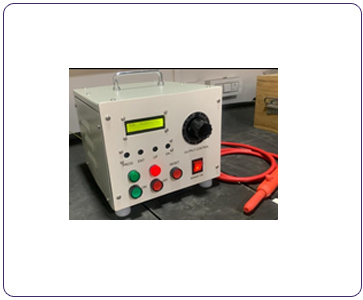

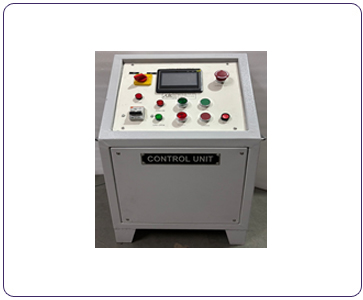

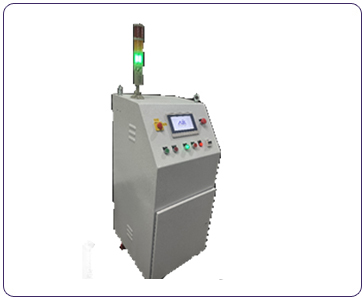

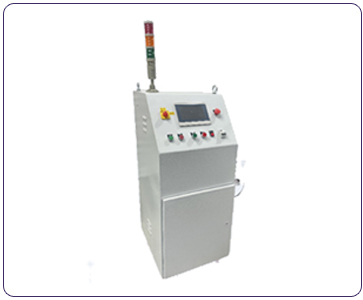

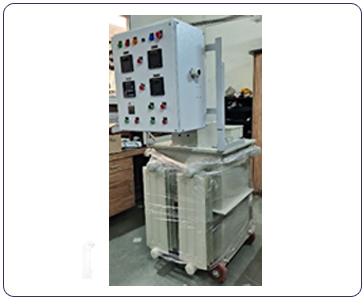

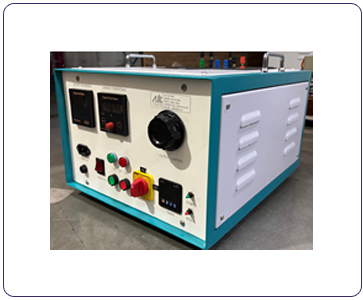

H. V. Test Sets

Features:

  • Compact and simple to operate.
  • Zero interlock for HV output.
  • Analog Or Digital read-outs.
  • Adjustable Leakage current.
  • Audio visual indication for presence of high voltage.
  • Continuously variable test voltage.
  • Highly sensitive electronic circuit for tripping .
  • Available in AC as well as Dc outputs upto 100 KV.
  • Microprocessor Based Sets are also available.
Sr No Model No OP Voltage Trip Current
1 HV 1 0 to 5 kv 30 MA
2 HV 2 0 to 5 kv 100 MA
3 HV 3 0 to 10 kv 30 MA
4 HV 4 0 to 10 kv 100 MA
5 HV 5 0 to 20 kv 30 MA
6 HV 6 0 to 20 kv 100 MA
7 HV 7 0 to 30 kv 20 MA
8 HV 8 0 to 30 kv 1000 MA
9 HV 9 0 to 50 kv 20 MA
10 HV 10 0 to 50 kv 50 MA
11 HV 11 0 to 50 kv 100 MA
12 HV 12 0 to 60 kv 50 MA
13 HV 13 0 to 60 kv 75 MA
14 HV 14 0 to 60 kv 100 MA
15 HV 15 0 to 75 kv 50 MA
16 HV 16 0 to 75 kv 75 MA
17 HV 17 0 to 75 kv 100 MA
18 HV 18 0 to 100 kv 50 MA
19 HV 19 0 to 100 kv 75 MA
20 HV 20 0 to 100 kv 1000 MA

Note : AC Models :HV - ... , DC - Models : HV-...D.

Input supply : 230 V AC/ 1 phase, 50 Hz.

Metering       : a) Analog /Digital Kv Meter .
                       b) Analog /Digital mA meter.

Transformer : a) Up to 5 Kv - oven Baked varnished type.
                       b) Up to 50 Kv - Epoxy resin cast type.
                       c) 50 Kv and above Oil immersed type.

Indications   : a) HT ON .
                       b) HT OFF.
                       c) Mains ON.

Optional       : 2 Digit , Digital Timer.

Enclosure     : HV test set are housed in powder coated sheet metal cabinats.

HV Probe      : HV test probe with 1.5 Mtr. Cable will be supplied up to 10KV range.
