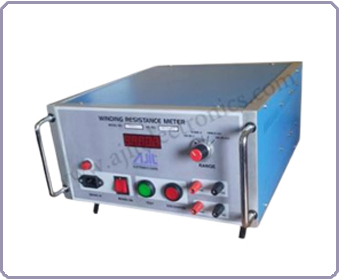

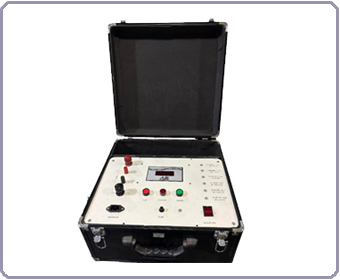

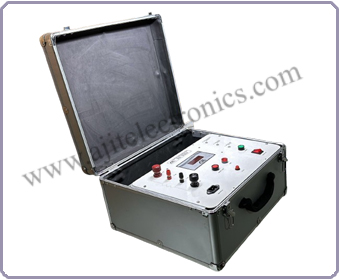

Winding Resistance Meter

Features:

  • 5 digits LCD display with annunciations..
  • Range : 0 TO 9.99999 O
  • High measurement Current (20A)
  • True 4 wire resistance measuring technique eliminates lead resistance errors inherent in 2 wire systems.
  • Fully protected against over loads.
  • Auto hold operation
  • Proven design.
  • Not intended for heavy inductive loads.





Technical Specifications


MODEL WRM 1 P
Display LCD
Range 0 – 9.99999 O
Max. Current 20 A
Power 230 V AC, 50 Hz.
Printer Built – in 24 column thermal printer
Over range Indication Yes
Interactive message Yes
Hold Mode Yes
4 Wire Measurement Yes
Warm Up Time 2 Min.
