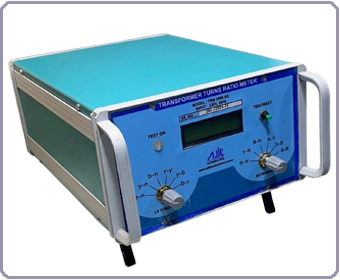

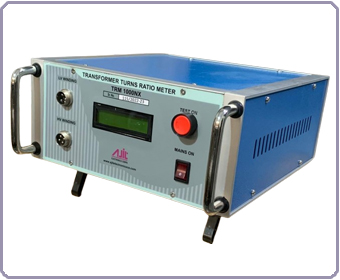

Transformer Ratio Meters

Features:

  • Design with latest Technology.
  • 4 1/2 Digit Direct read-out.
  • Compact and light weight.
  • Wide range of measurement.
  • Economical.






Application

Transformer Ratio Meters are the most modern digital turn's ratio meters widely used to test the turn's ratio of high voltage windings to low voltage windings of any Transformer. These meters are accurate, compact & light in weight.


Technical Specifications


Measuring Ranges : a) 0 to 20
b) 20 to 200


Display: 4 1/2 Digit , LED type.


Power Requirement :230V AC +/- 10 % , 50 Hz, 1 Phase


Size in mm (L X D X H) : 260 X 205 X 110


Weight : 2.5 Kg. Approx.


Accessories: a) Mains Cord
b) Test Leads
c) Instruction Manual


Timer : +/- 0.1% +/- 2 counts.


Protection : a) Fuse / MCB .
b) Over current protection.
