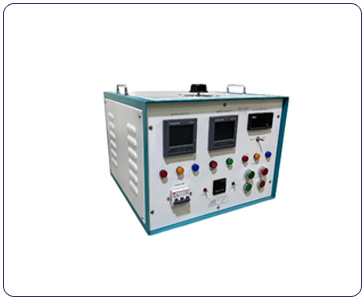

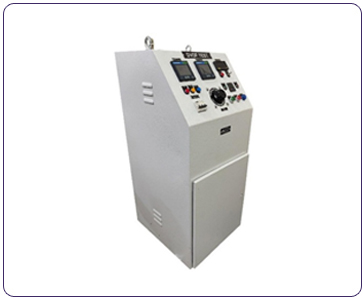

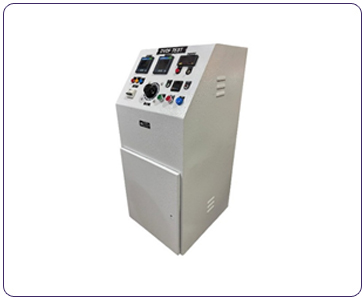

Double Voltage Double Freequency Test Set up

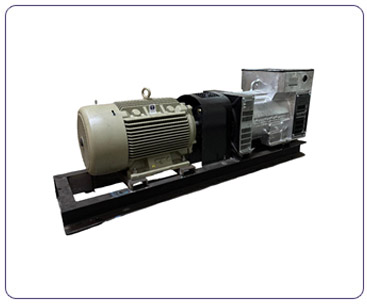

- This test setup is generally used to perform induced voltage test on the transformers. This set up consists of the used motor and generator combination to develop the required voltage and frequency.
Input to motor : 415 V three phase, 50 Hz.
Out put voltage: 100 to 900 V AC.
Out put frequency
:100 to 129 Hz.
: F10 KVA
Direction of the motor: Should be clockwise.
Dimmer stat: Apply dimmer stat to the generator terminals.
